Application
The solar collector is used for heating the heat transfer
Agents (water, antifreeze) which are circulated natural or
Compulsory init under the directly influence of the solar
Energy.
The solar collector can be transferred into traditional
Beating systems as a parallel alternative energy source and
Can be used as a basic unit for designing the individual
Beating system.
TECHNICAL SPECIFICATIONS
Serves life, years---------------------------------------25
Guarantee period, years---------------------------------5
T?C of environment-------------------------------0...+45
T?C of the water in hub container in sunny day--+70...+93
Working pressure, Map (kg/m ?)--------------------1(18)
Area of absorption panel/total area, m ?---------1.84/2.02
SAC absorption capability---------------------0.92...0.96
SAC degree of blackness----------------------0.03...0.08
Dimensions, mm--------------------------2007x1007x100
Weight, kg----------------------------------------------42

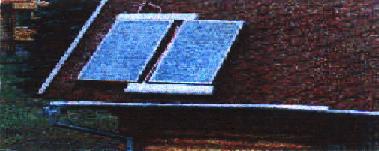

THE AREAS OF APPLICATION
The solar collectors of the hot water supply
Systems and hot water heating systems are used
For individual use (private houses, cottages, village houses, etc).
The solar collectors of the hot water supply systems are used
For communal-general and industrial buildings (hotels, boarding
Houses, restaurants, cafes, laun dries, farms, est.)
CHARACTERISTICS AND BENEFITS
Assembling on any plate surfaces.
160 liters of water during 24 hours heated not lower 60%C
The corrosive aluminum alloy is used in the
Construction of the solar collector (body, absorption panel).
The selective absorption coating that has a high
Efficiency of transforming solar energy info thermal
Energy is applied on the surface of the absorption panel
By the method of vacuum disposition.
Ecology calmly clean and safety.
